13 - 4

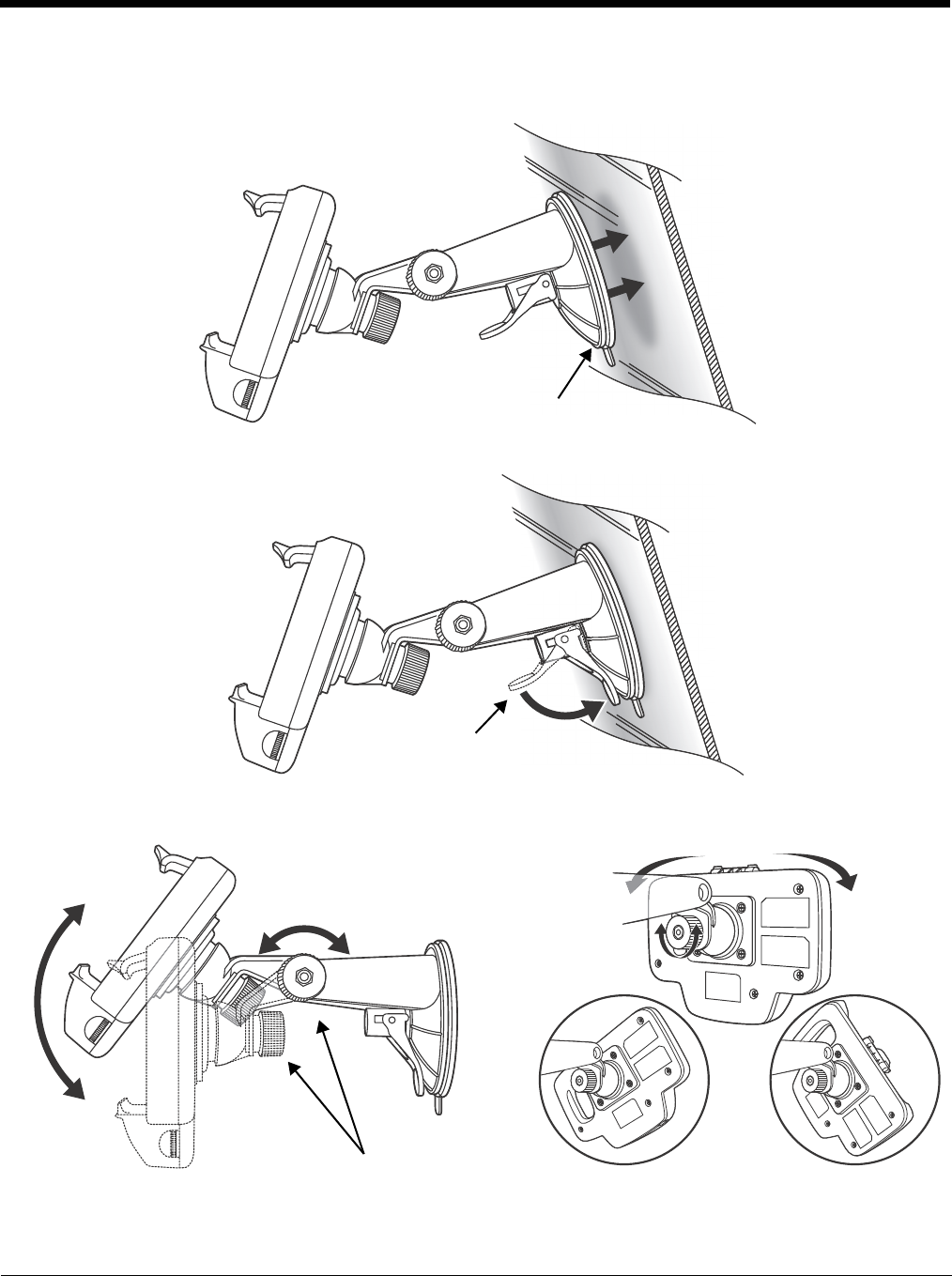

Installation

1. Push the suction cup base firmly to the windshield.

2. Flip the mounting lever down to secure the suction cup.

3. To adjust the angle of the bracket arm, twist the thumb screws counterclockwise to loosen the locks.

Reposition the angle of the arm, and then twist the knobs clockwise to lock the arm into position.

Suction Cup Base

Mounting Lever

Thumb screws for arm

angle adjustments.
